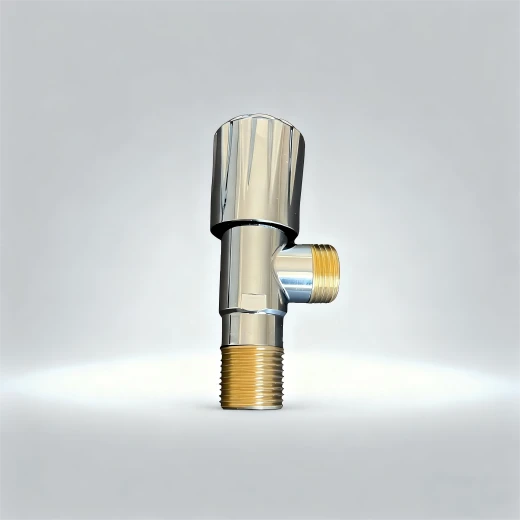

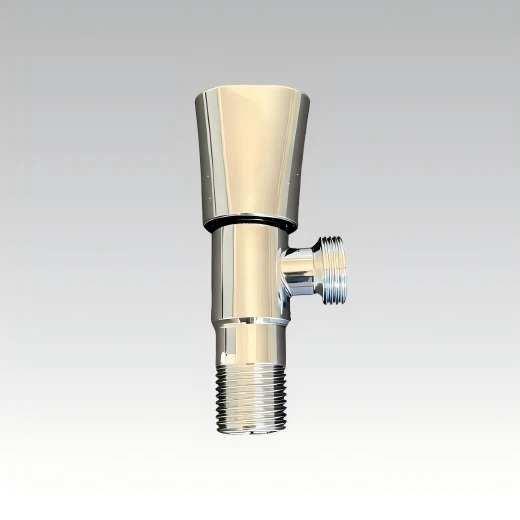

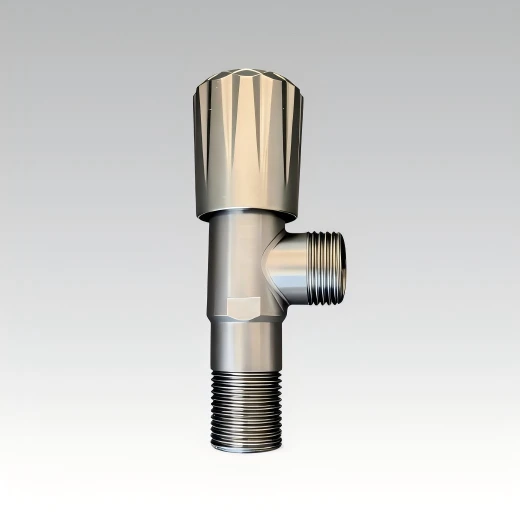

201 Stainless Steel Angle Valve with Plastic Cartridge

The 201 Stainless Steel Angle Valve with Plastic Cartridge is a specialized 90° fluid control device engineered for directional flow redirection, flow rate modulation, and on/off regulation in low-to-medium pressure residential and light commercial plumbing systems (e.g., sanitary fixture supply lines, potable water pipelines). It integrates a 201 stainless steel valve body (for structural integrity) with a precision-molded plastic sealing cartridge, delivering balanced performance tailored to routine water supply control scenarios.

● Balanced Material Performance: The 201 stainless steel body provides adequate corrosion resistance and mechanical rigidity for ambient-temperature potable water systems, while the plastic cartridge ensures tight, consistent sealing and reduced operational friction.

● Space-Optimized Configuration: The integrated 90° angular design eliminates the need for separate elbow fittings, enabling efficient pipeline layout in space-constrained installations (e.g., behind toilets or faucets).

● User-Friendly Operation: The knurled top actuator supports tool-free, manual adjustment of the cartridge position, facilitating precise flow tuning or rapid positive shut-off.

● Cost-Effective Maintainability: The modular plastic cartridge features stable dimensional consistency, allowing straightforward replacement (when required) with minimal disassembly of the valve assembly.



⒈Cost-Effective Mass Market Alignment: The 201 stainless steel construction strikes a balance between material cost and basic corrosion resistance-offering a more competitive price point than 304/316 stainless steel angle valves, while still meeting the long-term usage needs of residential and light commercial settings. This precisely caters to cost-control demands in the mainstream renovation market.

2.Broad Pipeline Compatibility: Featuring industry-standard threaded connections, it seamlessly adapts to the piping systems of mainstream sanitary fixtures (toilets, sinks, shower units), reducing installation compatibility risks and aligning with the standardized construction processes of most renovation projects.

3.Stable Supply Chain & Delivery Capability: Mature supply channels for 201 stainless steel and plastic cartridges, paired with moderate production process thresholds, enable large-scale mass production. This ensures stable market supply and shorter procurement lead times, matching the tight timelines of renovation projects.

4.Low After-Sales Maintenance Costs: The modular plastic cartridge can be replaced easily (no specialized tools or technicians required), allowing end-users or general construction workers to complete maintenance. This significantly reduces after-sales service costs for distributors and enhances user experience satisfaction in the end market.

5.Balance of Aesthetics & Practicality: The metallic finish of 201 stainless steel aligns with modern minimalist renovation styles, offering better visual texture than all-plastic angle valves. This creates differentiated aesthetic competitiveness in the affordable product segment, making it more appealing to end consumers.

Flow Redirection: The valve's 90° body geometry connects the inlet (bottom external-threaded port) to the outlet (side external-threaded port), redirecting incoming fluid flow by 90° through the internal flow path.

Cartridge-Driven Control: Rotating the top knurled actuator adjusts the internal plastic cartridge: aligning the cartridge's flow orifice with the valve's inlet/outlet ports permits fluid passage (with flow rate determined by orifice alignment degree), while misaligning the orifice achieves complete flow shut-off.

Sealing Mechanism: The precision-molded plastic cartridge interfaces tightly with the valve body's internal sealing seats-this creates a leak-tight barrier in the shut-off position, and maintains controlled sealing clearance during flow regulation to prevent excessive leakage.
