Direct Sliding Fasteners

Different-diameter reducing straight sliding fastener is used for connecting pipes of dissimilar outer diameters. While equal-diameter direct sliding fastener is designed exclusively for straight-line connection of pipes with identical outer dimension. No diameter transition function is available, suitable for straight-run continuation of same-size pipelines.

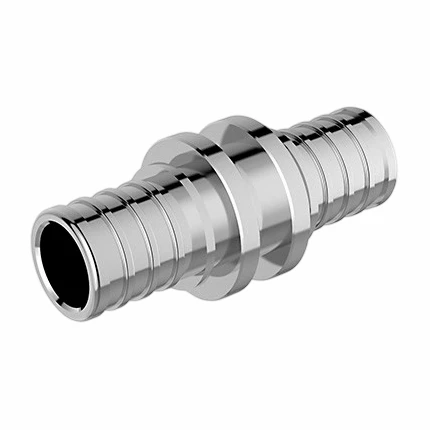

Yuanlun direct sliding fastener is equal-diameter straight slide-tight coupling made of premium stainless-steel. It relies on shape-memory rebound property of PE-X / PEX pipe material together with sliding-tension-ring radial compression to realize leak-proof joint, no extra auxiliary sealing gaskets required.

Complies with GB/T 22051-2008 national standard, PN16 (1.6 MPa) nominal pressure rating, continuous operating temperature up to 90℃. Compact streamlined body, high installation efficiency and comprehensive cost-reduction benefits. Widely-applied for household heating, building plumbing, irrigation and light-industrial fluid-handling piping-systems.

Important note: Installation recommended to be completed by qualified plumbing technicians. Specialized slide-tension pliers are mandatory. Pipe-end shall be squarely-cut, deburred and correctly flared; defective pipe-end will result in hidden leakage risk.

• Self-Adaptive Sealing Utilizes pipe material shape-memory rebound property to achieve leak-proof connection without additional independent sealing-gasket components.
• Streamlined Compact Structure Space-saving slim-body layout, delivers neat and integrated visual effect for finished pipeline layout.
• Highly Secure Long-Term Connection Robust mechanical clamping performance, maintains stable leak-free status under long-term cyclic temperature fluctuation.
• Rapid Installation Performance Optimized structure improves field assembly efficiency up to 70%.
• Cost-Effective Solution Reduces comprehensive expenditure of raw-material, labor-hour and later-stage maintenance by more than 50%.
• High-Temperature Resilience Supports continuous service up to 90℃, perfectly matching working-condition requirements of domestic heating-loop systems.
• Home-Heating Optimized Compatibility Specially adapted for residential heating-system pipeline integration.

Specifications

• Standard Compliance: GB/T 22051-2008
• Nominal Pressure: 1.6 MPa
• Temperature Range: 5℃ ≤ t ≤ 90℃

• Main Components & Function

• Operating Principle

• Carry-out flaring-treatment on both pipe-ends; properly-flared mouth is prerequisite for memory-effect sealing.
• Insert two flared equal-diameter pipe-ends into respective ports of straight-coupling main-body.
• Deploy dedicated slide-tension pliers to apply axial thrust, push sliding-tension ring forward.
• Sliding-tension ring produces radial contraction, firmly clamps pipe outer-wall. Combined with shape-memory rebound force of flared pipe-end, it forms friction-lock plus self-adaptive sealing, preventing liquid/gas medium leakage.

Operating reminder: Dedicated slide-tension pliers cannot be substituted by ordinary hand-tools. Non-standard flaring or incomplete crimping will cause joint-leakage.

• Residential Household Heating Systems

Use-case: Straight-run pipe extension for floor-heating and wall-hung-boiler heating-circuits. Project value: Max continuous working-temperature 90℃, specially-optimized for heating-loop cyclic-temperature-change environment.

• Building Cold-Hot-Water Plumbing Systems

Use-case: Same-diameter pipe straight-butt-joint for indoor potable-water pipelines. Project value: Compact streamlined appearance, raise construction-efficiency and lower comprehensive project-cost.

• Garden & Agricultural Irrigation Systems

Use-case: Straight-connection for PE-X / PEX irrigation pipelines. Project value: Stainless--steel body offers good outdoor anti-corrosion performance.

• Light-Industrial Fluid-Handling & Hydraulic Auxiliary Circuits

Use-case: Straight-run connection for non-corrosive-medium plastic-pipe process-pipelines. Project value: High-reliability mechanical-clamping joint adapts general-purpose industrial circulating-medium conditions.

• Installation

Ensure pipe ends are clean and free of debris before installation. Use appropriate tools and follow proper procedures to ensure uniform contraction of the sliding tension ring and a tight fit with the pipe.

• Maintenance

Regularly inspect connections for leaks or anomalies, but no special maintenance is required. If damage or poor sealing is detected in the sliding tension fitting, replace it immediately to maintain the safe operation of the pipeline system.

• Pre-Installation Check

1. Confirm fitting DN-size matches outer-diameter of both connected equal-diameter pipes; prepare matched flaring-tool and slide-tension pliers.
2. Inspect coupling-body and sliding-tension-ring; reject cracked, scratched or deformed components.
3. Square-cut pipe-ends, thoroughly clear burrs, chips and dirt from pipe mouth and outer-wall.

• Installation Steps

1. Put sliding-tension-ring onto pipe in advance. Complete qualified flaring-process for pipe-end.
2. Insert flared pipe-end fully into one port of straight-coupling body.
3. Operate matched slide-tension pliers, push sliding-tension-ring to designated final-position.
4. Repeat flaring-insert-crimp workflow for the opposite pipe-end.
5. After assembly completion, slowly pressurize system and perform leakage inspection for both crimp-joints.

• Important Installation Notes

1. Installation recommended for qualified plumbing technicians.
2. Must use matched dedicated flaring-tool and slide-tension pliers; makeshift-tools are prohibited.
3. Pipe-end burr, incomplete flaring or insufficient crimp-stroke will trigger hidden-leakage risk.
4. Once sliding-tension-ring is crimped and plastically-deformed, reuse after disassembly is not recommended.

Routine-Maintenance Suggestion

• Visual inspection for crimp-joint leakage: Quarterly
• Check joint locking-state during system overhaul: Annually
• Replace whole fitting assembly when sealing-failure occurs: As-required

Yuanlun direct sliding fastener is stainless-steel equal-diameter straight slide-tight coupling complying with GB/T22051-2008 national-standard. PN16 pressure-rating, DN15-DN50 equal-diameter combinations available. Adopts pipe-material shape--memory self-adaptive sealing without auxiliary gaskets; improves installation-efficiency by up to 70 %, cuts comprehensive cost over 50 %, max continuous service temperature reaches 90℃. Widely-applied for domestic heating, building plumbing, irrigation and light-industrial non-corrosive--fluid piping-systems. Sample-order supported for pre-project-evaluation, 15-day standard lead-time for worldwide plumbing-HVAC distributors and engineering-contractors.
